DESCRIPTION

Basic Info

Model NO.	Touch Probe
Warranty	12 Months
Logo Printing	OEM/ODM
Size	Small
Customized	Customized
Type	Touch Brobe
Material	Stainless Steel
Certification	ISO 9001:2008
Application	CNC Machine, Machine Tool
Transport Package	Normal
Specification	D40*L55.85
Trademark	OEM/ODM
Origin	China
Production Capacity	10000 Sets/Year

Product Description

Specification

Model	DOP40
Repeatability(2σ)	<1um
Trigger direction	±X,±Y,+Z

Trigger force	XY plane: 0.4-0.8N	Z: 5.8N
Protective range	XY plane: +/-12.5°	Z: 6.35mm

Signal transmission mode	Infrared optical
Operating range	Up to 5m
Trigger life	>10 million
Transmission angle	360° transmission envelope
Transfer activation	Automatic change
Weight without shank	280g
Battery model	2 Lithium battery 14250

Battery life	Stand by	>1080 days
	5% utilization	420 days
	Continuous work	120 days

Sealing	IP 68
Operating temperature	0-60°C

Product Functions

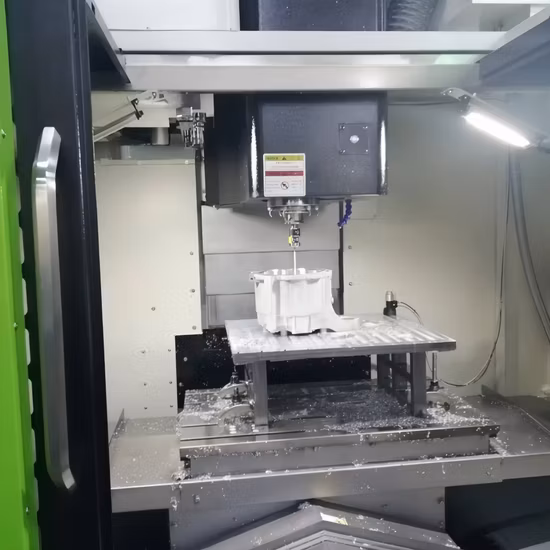

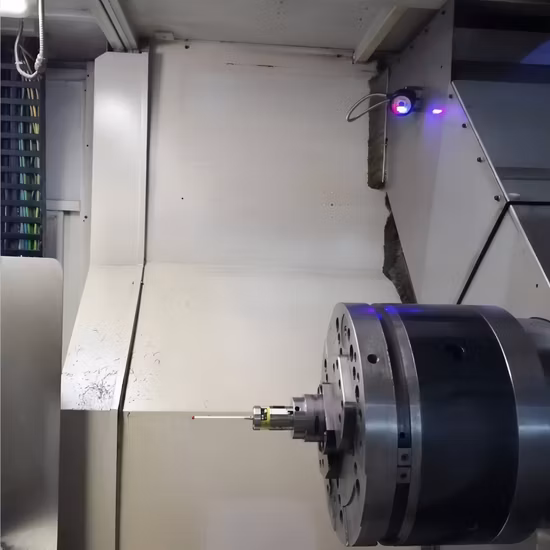

Solution

Product Description

CertificationsPackaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1:Are you a factory or trading company?

A1: We are a factory located in Dongguan city, you are welcome to visit our factory anytime.
Q2: How to choose the appropriate model or specifications? A2:Based on your requirement and application, our professional sales and engineers will offer you a detailed suggestions regarding models and specifications.
Q3: Do you accept customized service? A3:Yes, we can provide not only standard products,but also customized service to meet various customer demands.
Q4: What is your warranty perjod? A4: Our standard product watranty pendd i5 one yuat. Our quality system quarantees the high precision. repeatability, stability and long-life of our products.
